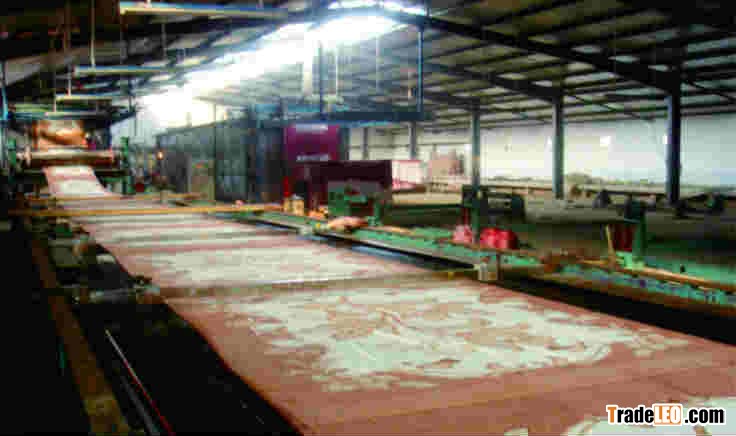

Uses and main technical parameters:1.It is used for automatic-printing of blankets
2.working width:2200mm,2400mm(according to order)
3.Overall dimensions:73800*4100*4460(mm)(working width 2200mm)
73800*4300*4460(mm)(working width 2400mm)
4.Number of color:10(optional)
5.Working speed:6~9 sides/min
6.Total motor power:85kw
7.Power of magnetic support:3kw*10(10 colors)
Features:
1.Cloth feeding part is adopted with center device.
2.Use double servo-system to drive the belt,it is very accurate.
3.Adopt permanent magnetic-support which can save power
4.Use touch screen as operation panel,it is convenient and easy view
5.Driven by servo-system, the magnetic support is quick and accurate
6.The vertical movement of printing frame is driven by servo-system which has high working efficiency.
7.Uses Japan Yaskawa servo motor and Japan Mitsubishi PLC control system,it can display the errors automatically.
