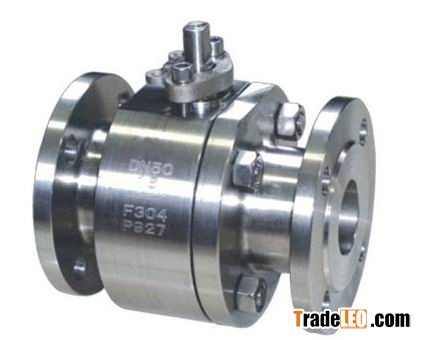

2-PC Cast Steel Design ball valves featuring with 2-PC split body, trunnion mounted ball. This type of valves has advantage of less weighted and cost effective. It is ideal for frequent on-off flow control in big size and high pressure pipeline. The ball valves are fire safe per API 607 and API 6FA.Design Standard:
Basic Design: API 6D
Test: API 6D, BS 6755, API 607, API 6FA
Products Range:
Size: 2" ~ 24"
Rating: ANSI 150lb ~ 1500lb
BodyMaterials: Carbon steel, Stainless steel
Trim: A105+ENP, 13Cr, F304, F316
Operation: Handwheel, Gear, Motor, Pneumatic operator. www.fagongvalve.com
