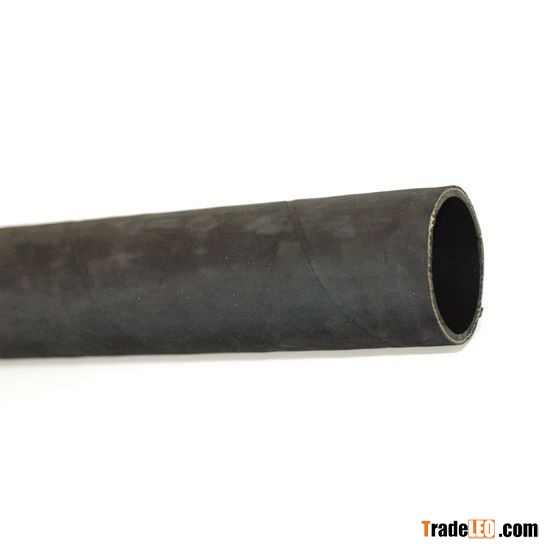

SAE 100 R13 STANDARD Tube: oil resistant synthetic rubber
Reinforcement: four or six high tensile steel wire spiral layers (4W/S or 6W/S)
Cover: abrasion and weather resistant synthetic rubber
Temperature range: -40? to +125?
DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius
inch mm mm mm Mpa psi Mpa psi mm
19 3/4" 19.0 28.4 32.2 35.0 5000 160.0 20000 280.0
25 1 25.4 35.2 38.7 35.0 5000 160.0 20000 340.0
32 1-1/4" 31.8 41.9 45.5 35.0 5000 160.0 20000 460.0
38 1-1/2" 38.1 48.8 53.5 35.0 5000 160.0 20000 560.0
51 2" 50.8 63.2 68.1 35.0 5000 160.0 20000 700.0
