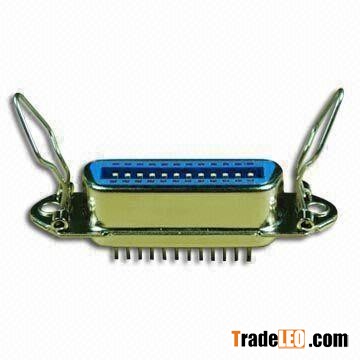

Features:Contact positions: 14, 24, 36, 50
Available with dip solder tails
Socket style only
Equipped with spring latches
metal shell provides grounding and shielding capability
Mates with industry compatible connectors
Materials:
Contacts: phosphor bronze
Housing: PBT (UL 94V-0)
Shell: cold roller steel
Electrical characteristics:
Current rating: 5A
Withstanding voltage: AC 1,200Vrms
Insulation resistance: 1,000 MO minimum at 500V DC
Contact resistance: 30 mO maximum
Operation temperatures: -55 to +105°C
Mechanical characteristics:
Contact resistance force: 322g maximum
Contact seperation force: 70g minimum
Finishes:
contact: gold flash, 10, 15, 30 to 50 micro inches
Shell: tin
