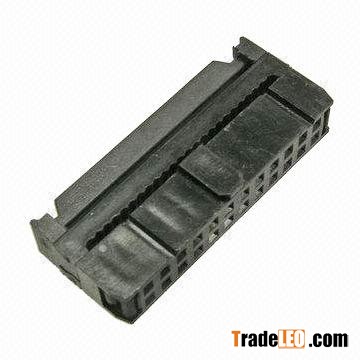

IDC Socket Connector with Brass Contact, Used for Ribbon Cab
2017-01-05 04:38  Views:184
Price:Negotiable
Send Inquiry
 Pitch: 1.27 x 2.54mm
Contact material: brass
Insulation material: PBT (standard color: black)
Number of circuits: 6 to 64
Standard colors: black, gray
Rated current and voltage: 1A, 250V AC (RMS)
Dielectric strength: 1,000V AC for one minute
Contact resistance: <30MO
Insulation resistance: >1,000MO
Ambient temperature: -40 to 105°C
Compliant with RoHS Directive
Used for ribbon cables
