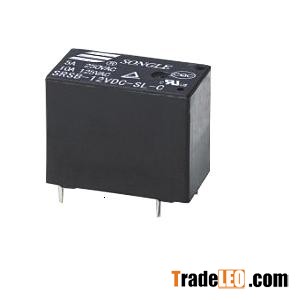

Product DescriptionHome appliance control relay size:18.2x10x15.7
Product Feature
contact form 1a 1b 1c rated load 10A 125VAC 5A 250VAC contact resistance 50m;electrial life 100000 mehanical life 10000000
Product Specification/Models
coil rated voltage 5-24vdc coil power 0.26w,0.45w pick up voltage 80% drop-out voltage 5%
Application
ambient temperature -40~+85 coil& contacts 2500vac/1min contact & contacts 1000VAC/1MIN insulation resistance 100M mounting form p.c.b.
Other Information
weight:9g SAFETY approval :CQC
