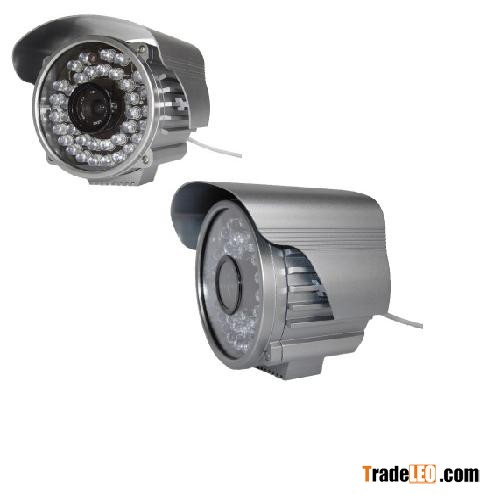

IR Series Camera, 1/3cun SONY COLOR CCD, Own IR LED (36PCS, ?5), 420TVL, Standard Configuration8~25mm lens, IR Projection Distance 30~60m.
High Performance Aluminium Alloy Housing, Compact fuselage design
Image Sensor 1/3 cun Sony CCD
Effective Pixel PAL:752(H)x582(V) NTSC:768(H)x494(V)
Signal System PAL/NTSC
Horizontal Definition 420TVL
Camera Lens 8~25mm
Minimum illumination 0Lux
Electron enlargement Without
Shutter Speed 1/50(1/60)~1/100000sec.
White Balance Auto-tracking
Signal To Noise Ratio(SNR) >48db(AGC OFF)
Aggregation Automatic
Video Output 1.0Vp-p, 75O
Power Supply DC12V
Watt Consumption 12W
Faucet VIDEO OUT(BNC)
IR LED Projection Distance 30~60m
IR LED/ Wavelength 80+14LED/850nm
IR LED outset Automatic
Size (length)90mm x(width)122mm x(height)116mm
Working condition -20?~50?
