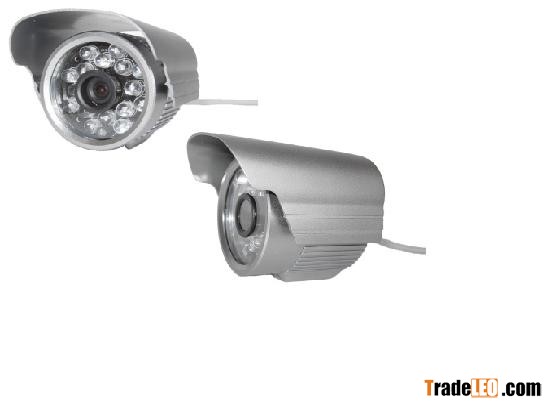

IR Series Camera, 1/3cun COLOR CCD, Own IR LED (36PCS, ?5), 700TVL, Standard Configuration3.6~8mm lens, IR Projection Distance 10~30m. High Performance Aluminium Alloy Housing, Compact fuselage design.

Image Device 1/3cun COLOR CCD
Signal System PAL/NTSC
Horizontal Definition 700TVL
Pixel PAL(976 X 582);NTSC (976 X 494 )
Video Output VBS; 1.0Vp-p 75O BNC
Signal To Noise Ratio(SNR) >48db
Minimum Illumination 0LUX/F1.2(IR LED is turned on)
Gamma Feature r=0.45
White Balance Auto-tracking
Auto Electronic Shutter(AES) PAL(1/50~1/100000sec.);NTSC(1/60~1/100000sec.)
Backlight Compensation Automatic
IR LED on-off control Automatic
Infrared Wavelengths 850nm
Lens Standard configuration3.6~8mm lens
IR projection distance 10~30m
Dustproof infrared level lp68
Power supply DC12V
Size (length)76mm x (width)77mm x (height)72mm
Temperature adaptation -20?~60?
Humidity 0%~96%
