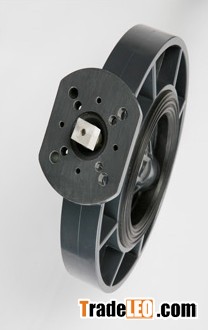

Butterfly with hand lever typeSize: DN50~DN200 (2"~8")
Working pressure:
DN50~DN150 1.0MPA (150psi)
DN200 0.6MPA (100psi)
Material: PVC,CPVC,UPVC,PPG/FRPP,PPH,PP-R,ABS,PE
Standard:GB,DIN,ANSI,JIS,CNS
Stem material: 45# carbon steel, 2Cr13, SUS304, SUS316
Butterfly with gear type
Size: DN80~DN600 (3"~24")
Working pressure:
DN0~DN200 1.0MPA (150psi)
DN250~DN300 0.6MPA (100psi)
DN300~DN600 0.4MPA (60psi)
Material: PVC,CPVC,UPVC,PPG/FRPP,PPH,PP-R,ABS,PE
Standard:GB,DIN,ANSI,JIS,CNS
Stem material: SUS304, SUS316
Advantage:
Economical Alternative to metal Butterfly Valves
Ergonomic Red Handle withTri-bolt hand lever, very good durability
Low torque,high strength,extremely long life
Exposed tooth paste.positioning accuracy
ISO 5211 Mounting Pad
Application:
Different water system including waste water system
Chemical processing/Marine or Corrosive environments
Irrigation/Aquarium/Pool
