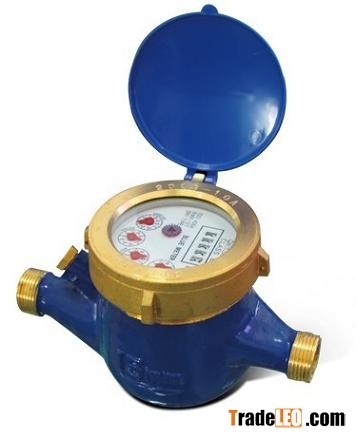

Multi-jet Dry-dial Cold Water Meter Model:LXSG-15E-50E
Features:
1.Brass shell ;
2.Magnetic drive ;
3.Dry-dial register;
4.Easy and long term clear reading;
5.Brass body can be painted or nickel coated;
6.High accuracy;
7.The meters conform to ISO4064 Standard Class B;
8. Easy interchange and maintenance;
Working condition:
1.Water temperature=40°C Hot water temperature =90°C
2.Water pressure=1Mpa
Accuracy:
1.From minimum flow-rate (qmin) inclusive, to transitional flow-rate (qt), exclusive:±5%
2.From transitional flow-rate (qt) inclusive, to overload flow-rate (qs),
exclusive:±2%
