LCD Screen: 9.7" HD Diagonal IPS LCD Resolution: 1024*768

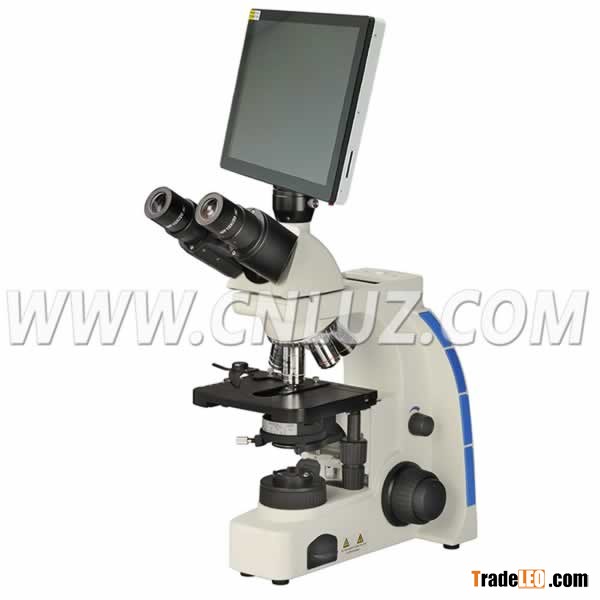

Main Body of MLB.038002
Head: Seidentopf Binocular Head, Inclined at 30°, 360° rotatable; Interpupillary Distance 52-75mm, ±5diopter adjustment with C-mount Adapter
Eyepiece: Wide Field Eyepiece WF10x/20mm
Magnification: 40x~1000x
Objective:
Infinite Plan Achromatic Objective 4x
Infinite Plan Achromatic Objective 10x
Infinite Plan Achromatic Objective 40x
Infinite Plan Achromatic Objective 100x(Spring,Oil)
Nosepiece: Quadruple, reversed type with positive click stops
Focusing: coaxial coarse&finefocusing system with an adjustable tension control and upper limit stopcoarse knob coarse 14mm/rot,fine 0.1mm/rot, minimum reading 1µm on left-side fine knob, moving range 20mm
Stage: Double layer mechanical stage, size 156x138mm, moving range 76x54mm low position
Condenser: Abbe N.A.1.25with iris diaphragm and with socket
Illumination: 6V 20W halogen lamp
