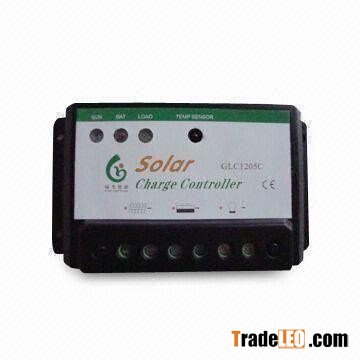

This controller applies to general PV system, using high-performance MCU for intelligent control Controller combines the charge modes of MCT (maximum current track) and PWM
In this way, it not only ensures high-efficiency of charging, but also greatly extends the battery’s lifecycle
Charge and discharge by using MOS tube, low voltage drop in circuit, LED display real-time status of charge, discharge and errors
Rated voltage: 12V
Maximum current: 5A
Maximum voltage: 30V
On mode light control
On intensity: 8Lux
Off mode light/time control
Off intensity: 16Lux
Output power adjustable
Protection: reverse polarity, overload and reverse charge
Working temperature: -20 to 70?
Storage temperature: -35 to 80?
Elevation: =5,000m
Size: 138 x 70 x 33mm
Weight: 160g
