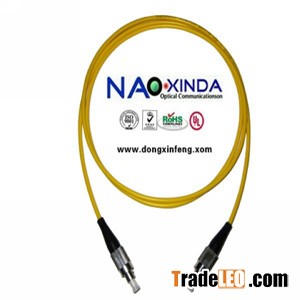

Brand:NXD
Send Inquiry
Applicable scope:1, optical fiber communication system,
2, optical fiber data transmission;
3, a local area network (LAN),
4, optical fiber sensors,
5, CATV.
Parameters
Insertion loss
Singlemode
PC=0.3dB
UPC=0.2dB
APC =0.3dB
Multimode
PC=0.5dB
UPC=0.3dB
APC =0.3dB
Return loss
Singlemode
PC=48dB
UPC=50dB
APC =60dB
Multimode
PC=25dB
UPC=45dB
APC =50dB
Reaptability
=0.1db
Changeability
=0.2dB
Working temperature
-40 to +80?
Durability
1000 times
Sustain tension
=100N
Fiber
9/125um ,50/125um, 62.5/125um, etc.
Diameter
0.9mm 2.0mm 3.0mm, etc.
Cable material
PVC, LSZH
Cores
Simplex, duplex, 4cores, 6cores, 8cores,12cores, etc.
