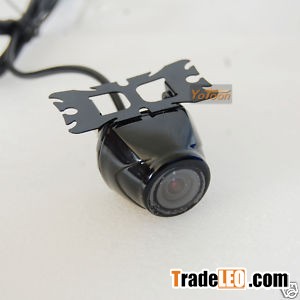

Auto backup cameras Car rear view 170 angle camera Information

Image device
1/4-inch color CMD

TV system
NTSC

Effective pixels
628 x 582 pixels /510 x 492 pixels

Sensing area
5.78mm x 4.19mm/4.69mm x 3.54mm

Sync. system
internal

Remarks
Color/Warterproof/Shockproof

Waterproof Index
lp67

Resolution
420 TV lines

Minimum illumination
0.5Lux/F1.2

Lens
1.7mm

Lens angle
170 deg.

S/N ratio
more than 48db

Electronic shutter
1/60 - 1/15,000 seconds

Video output
RCA connector, 1.0vp-p, 75ohm

Current consumption
90mA

Power supply
12 V DC

Operating temperature
-10 to 50 degrees ccentigrade, RH95% Max.

Storage temperature
-30 to 60 degrees centigrade, RH95% Max.

Other items
automatic white balance, AGC and BLC
