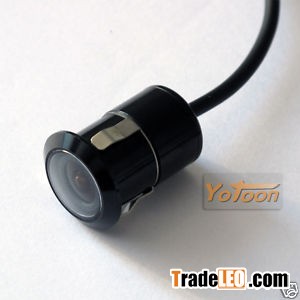

WaterProof Day/Night Vision CMT Car Rear View Camera system(Available with guide line/without guide line,Please select it,when you win the bid.if you didn't select,We will send without guide line the default,Thank you!)
Type of sensor: 1/4” PC1030 Color Camera
Resolution: 420 TV Lines
Min.effective Pixel: NTSC:(h)510*(v)492
Video System: NTSC
Gain Control: Automatic
Min.IIIumination: 0.1Lux
Anti Fog Glass: Yes
Operating Temperature: -30? to 85?
Storage Temperature: -40? to 100?
Horizontal Viewing Angle: 150o
Vertioal viewing angle: 120o
Video Out: 1.0Vp-p.75 Ohm
Power Supply: DC12V 90mA
Dimensions: 18.5mm*27mm
Remarks
Case Material: Zinc Alloy
Video Cable 1,5 m, 1.5 m power cord
Effective illumination at night
The product the appearance of small, large angle of 150 degrees, the image will not be deformed
Effective
waterproof (IP67)
