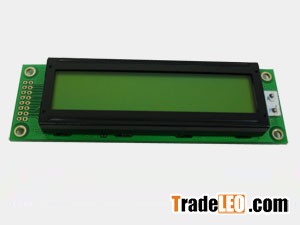

Description of 20*2 Character Type Liquid Crystal Display Module (UP-C202AYILY) listed as follow :LCD Display Mode: STN/YG, Positive, Transflective;
View Angle:6:00;
Driving Method: 1/16Duty, 1/5Bias, 4.2V;
Backlight : Yellow-Green;
Outline(mm):116.0*37.0*14.5;
Viewing Area(mm):83.0*18.6;
Active Area(mm): 75.4*11.5;
Dot Pitch(mm):0.65*0.70;
Dot Size(mm): 0.60*0.65;
Operation Voltage(V): 0-5.5;
Operation Temperature(?):0-50;
Storage Temperature(?):-10-60;
