Brand:Uptech
Quantity:6000
Send Inquiry

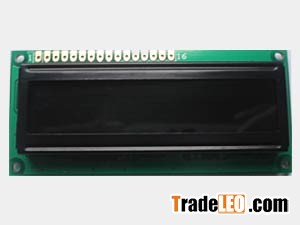

Description of Liquid Crystal Display Module (UP-C162CFILY) listed as follow :LCD Display Mode: FSTN, Negative, Transflective;
Viewing Angle: 6:00;
Driving Method: 1/16Duty, 1/4Bias, 5.0V;
Backlight: Yellow-Green;
Outline(mm): 80.0*36.0*14.5;
Viewing Area(mm): 64.5*13.8;
Active Area(mm): 57.7*11.8;
Dot Pitch(mm): 0.60*0.70;
Dot Size(mm): 0.55*0.65;
Operation Voltage(V):0-5.5;
Operation Temperature(?):0-50;
Storage Temperature(?):-10-60;
Available Models:
UP-C162CFILY(Model name); FSTN( LCD Type); Y-G(Backlight);5.0V
UP-C162CFILYW(Model name),FSTN(LCD Type); Y-G (Backlight);5.0V;
