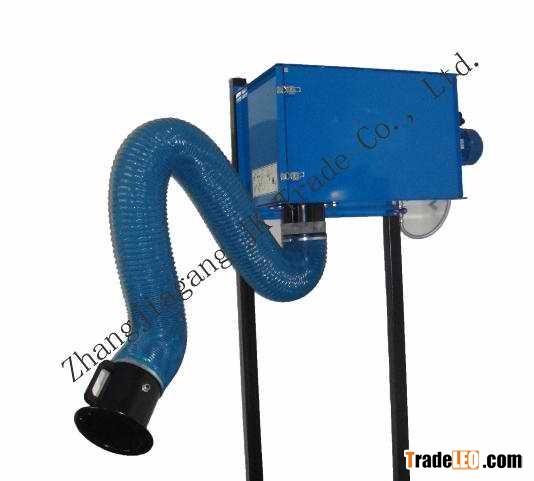

JG-12BW Welding & Cutting Fume Extractor is well designed and produced filteration or purification unit, which contains a HEPA cartidge.Dirty air is sucked by the turbo fan. The casing is made of high-quality mild steel and powder coated. (customer colors available).
JG-12BW includes a motor, circuit breaker.
Product Feature
The arm can rotate 360 degree.
High Efficiency, Flexible, Convenient & Advanced
Product Specification/Models
Model: JG-12BW
Air Flow: 1200 cmh
Efficiency: >99.9%
Power Consumption: 0.75 KW (1 HP)
Filter: HEPA Filter
Dimension: 500*465*625 mm (L*W*H)
Weight: 50 KG (contain one arm)
Power Input: 220V (single phase), or 380V (3 phase), 50/60 Hz
With Plus-jet Self Cleaning System.
Application
welding fume extraction, cutting fume extraction.
