ITO glass:
Bare (unpatterned) indium-tin-oxide (ITO) glass; ito conductive glass; ITO glass

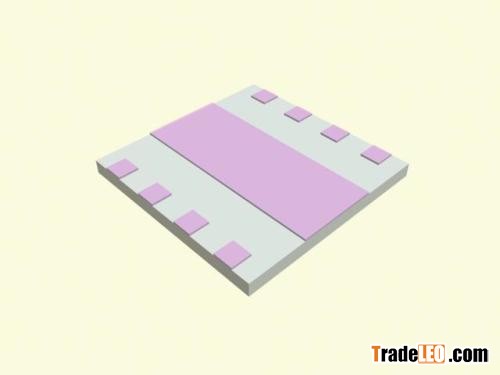

Patterned indium-tin-oxide (ITO) glass; pattern ITO glass
Application: OLED; PLEDs; PVs; OTETs; COG; LCD; Touch-panel; EMF/EMI/EMC/RFI/solar cell
Specification - ITO glass:
ITO glass configuration: Glass / SiO2 buffer (~25 nm) / ITO
ITO coating : Magnetron sputtering
ITO Patterning: Photolithography
Pattern Drawing: client design; pre-patterned
Size: 25mm x 25mm; 30mm x 30mm; 50mm x 50mm; 100mm x 100nn; 150mm x 150mm;
10mm x 10mm up to 355 mm x 406 mm
Sheet resistivity (ohm/sq) : 7,10, 15, 20, 100 ohm/sq. (recommended, Others are available)
Substrate thickness: 0.4, 0.55, 0.7, and 1.1 mm
