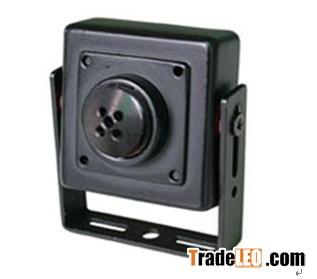

Specification:30*30*20(mm) compact design
SONY SHARP LG CCD is optional, 420tvl, 480tvl, 540tvl optional,
3.7mm Button Type Lens
Model
UV-8001D
UV-8002D
UV-8003D
UV-8004D
Pickup device
1/3” Color Sony CCD
1/3" Color Sharp CCD
1/3" Color LG CCD
Number of pixels
PAL:752(H) x 582(V) NTSC: 768(H) x 494(V)
PAL:512(H) x 582(V) NTSC: 512(H) x 492(V)
System of signal
PAL/NTSC
Horizontal resolution
540TV Line
420TV Line
Minimum illumination
0.8Lux
Lens
3.7mm Pinhole lens
Backlight compensation
Auto
Electronic shutter
NTSC: 1/60~1/10.000Sec PAL: 1/50~1/10.000Sec
AGC
Auto
White balance
Auto
S/N ratio
More than 52Db (AGC off)
More than 48Db (AGC off)
Gamma correction
>0.45
Operation temperature
-20?~50?
Sync system
Internal/System
Video output
1.0Vp-p (75O, composite)
