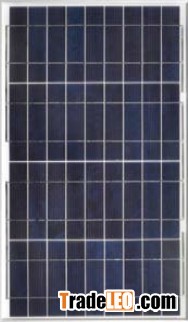

Electrical Specifications Model PBS35P-36
Max.Power 35
Max.Power Voltage 18.29
Max.Power Current 1.91
Open-Circuit Voltage 22.02
Short-Circuit Current 2.06
Power Tolerance ±5%
Max.system Voltage 600V
No.of Bypass Diodes 0
Mechanical Characteristics
Dimensions 426*665*25mm
weight 3.2kg
Cell per module 36pcs(4*9)Polycrystalline 156*39mm
Construction High-transmission low-iron tempered glass, EVA,TPT
frame Aluminium anodized, color: silver ,black
Temperature Coeffcients
Norminal Operating Cell Temp.(NOCT) 47?(±2%)
Temp. Coefficient Voltage(Voc) -0.32%/?
Temp. Coefficient Current(Isc) +0.03%/?
Temp. Coefficient Power(Pm) -0.42%/?
