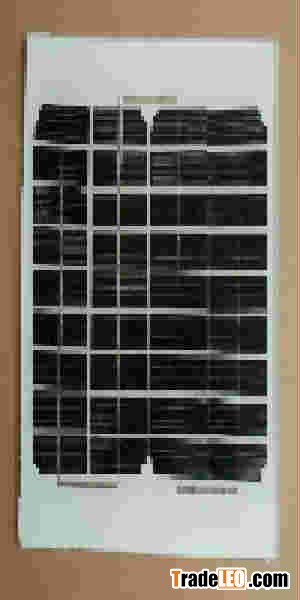

Mono 3W Solar panel/solar moduleMono-crystalline solar photovoltaic module
CY-TD3
Maximum power : 3W
Power Tolerance:±5%
Maximum power voltage Vm:9V
Maximum power current Imp :0.34A
Open circuit voltage Voc:10.62V
Short circuit current Isc :0.36A
Maximum system voltage:1000 VDC
Size of cells :125*125mm
Quantity Type and Arrangement cells: 2pcs Mono-crystalline silicon 2*1pcs
Cable type ,diameter and length
4m? TUV certified 900mm
Type of connector
Compatible type lll
No of bypass diodes:2pcs
Temperature coefficient of Pm:-0.45%/?
Temperature coefficient of Voc:-0.35%/?
Temperature coefficient of Isc:+0.05%/?
Standard test conditions:Am1.5 25? 1000W/?
Temperature range:-40?~85?
Size of module (mm):240*165*25mm
Weight of module(Kg):0.5
Packing(mm):12PCS 8Kg/carton
Certificate:CE,IEC61215,RoHS
Warranty:5years full product, 90% power of 10 years, 80% power of 25 years.
