Parameters JMM85-36 JMM90-36 JMM95-36
Peak power Pm(W) 85±5% 90±5% 95±5%
Open circuit voltage Voc(V) 22 22.6 23.2
Max. power voltage Vmp(V) 18 18.5 19
Max. power current Imp(A) 4.72 4.86 5
Short circuit current Isc(A) 5.1 5.25 5.4
Dimensions(L*W*H) 1200*553*45
Weigh(kg) 7.5
Max. over-current (A) 10
Max. system voltage (V) 1000V DC
Application Class Class A

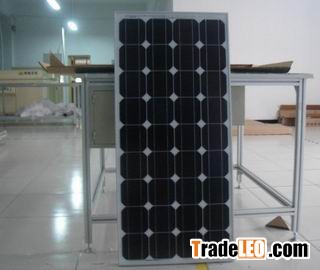

Mono crystalline silicon solar cell 125*125*0.19mm
No. of cells and connections 36series
No. of bypass diodes 3
Bypass diode rating (A) 10
Bypass diode max. junction  temperature(?) 200
Bypass diode thermal resistance(?/W) 3
STC Irradiance:1000W/m2,Cell temperature:25?,AM:1.5
