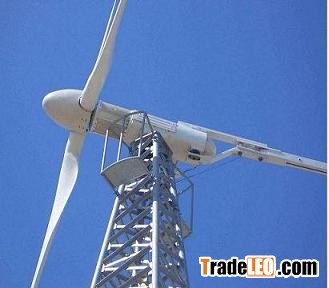

2kw wind turbine off-grid working system normal data: Model: FD3.2-2kw (now we have FD3.8-2kw model)
Rotor Diameter: 3.2m
Number of Blades: 3pcs
Material of Blades: Fibre glass expoxy
Cut-in wind speed: 3m/s
Working wind speed: 3-25m/s
Survival wind speed: 50m/s
Rated wind speed: 12m/s
Rated rotate speed: 300r/min
Rated output power: 2kw
Max output power: 2.5kw
Type of tower: Guy wire tower
Type of generator: Permanent-magnet 3 Phase AC
Speed regulation method: Yaw
Working voltage: DC48V/DC24V
Operating Temperature: -40---+60
Tower height: 7m
__________________________________________
Note:
1. Tower type, tower height can be special requested;
2. working voltage can be special requested;
3.Ce,ISO9001
4. For on-grid working system data, pls contract with us.
For output power curve, pls contract with us!
