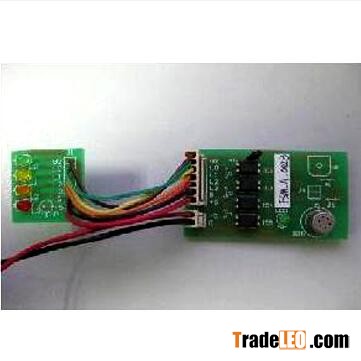

FSM-A-002 Air Quality Sensor Module based on TGS2600The FSM-A-002 air quality monitor mudele is composed of Figaro Gas SensorTGS2600 and a MCU on a PCB.
According to air quality, it can output 1)clean air 2)Low pollution 3)Medium pollution 4)High pollution. LED board can display the corresponding status 1)Green 2)Yellow 3)Orange 4)Red.
Features:
* High sensitivity to deoxidizing gases in air contaminants
* Long life
* Maintenance free
Application:
* Air quality control device
Specifications
model : FSM-A-002
definition : air quality monitor modual
Integratd sensor : TGS2600
Input and working current : DC5V, Max:60mA
Output : Optocoupler output; Output current 50mA
Operation temperature : -10? ~ 50?
Size : Main board:56mm*33mm; Led board:23mm*25mm
Test gas : hydrogen
