Brand:GenUV
Quantity:5000
Send Inquiry

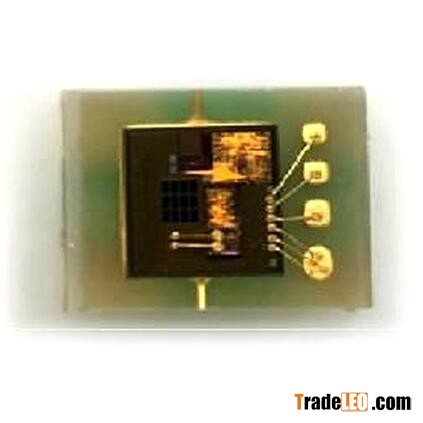

GENERAL DEscriptIONGUVA-C32SM supports integrated functions of ultraviolet light sensors such that can be easily configured and used in user applications.
GUVA-C32SM comprises photodiodes, amplifiers, ADC, digital control logic and I2C interface circuit. GUVA-C32SM receives UVA and outputs digital count according to the intensity. Power consumption can be minimized by proper use of power management mode.
FEATURES
? UVA sensing with 16-bit resolution
? Support UV index measurement (0 to 16)
? Programmable gain and integration time
? I2C slave interface up to 400KHz
? Power management modes
? Shutdown current : 0.8uA typical
? Supply voltage of 2.2V to 3.6V
? 2.0mm×2.3mm×1.4mm, 4-pin COBpackage
APPLICATIONS
Smartphone, Wearable devices, IoT, watch, weather
station, bicycle navigation, gaming, accessary
