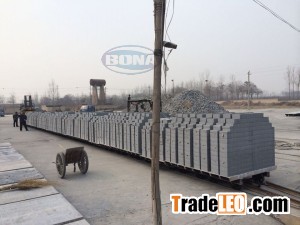

Fully automatic hydraulic autoclave block forming machine line includes finger car and steam curing system. It is in highly automatic and the fully automatic of the procedures. The brick production line includes material feeding, mixing, conveying, curing and stacking.Autoclave block forming machine production line can be fully and semi-automatic, which is suitable for the big and medium sized plant investment.
Technical parameters
Automatic hydraulic brick making machine: JYM-1280
Max pressure: 12800KN
Preload pressure: 1500KN
Max filling height: 420mm
Molding cycle: 15-20s
products specification Standard brick:240x115x53;Hollow brick:240x115x90;Hollow
block:390x190x190
Mold brick quantity per time: 38-40piece
Total power: 107.6kw
Host motor power: 90kw
Productivity: 60 million blocks
Overall size (L*W*H): 7800*3290*4630mm
Total mass: 55t
