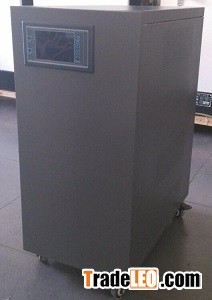

Capacity/Power: 20KVAInput Voltage Range: 380VAC ± 20%
Output Voltage: 380VAC ± 3%
Working Frequency: 50/60Hz
Response Time: <10ms
Efficiency: >98%
Overload Capacity: 5 times of rated output current, last for 1 second
Duty Cycle: Continuous
Transformer Winding Material: Al (Aluminum)
Insulation Class: F
Bypass System: Automatic bypass and internal manual bypass
Voltage Regulation Mode: Regulation on each phases individually
Ambient Temperature: -15°C to +45°C
Altitude: <1000m
Relative Humidity: 0-95%
Insulation Resistance: >2MO
Breakdown Strength: No damage at 2000V for 1 minute
Waveform Distortion: Nil
Output Waveform: Pure sine wave, does not change the input signal
Acoustic Noise: <45dBA
Display: LCD screen
Protection: Input Circuit Breaker, Automatic Bypass or Cut Off Output, Fuse for Each Phase
Installation: Indoor and floor mounted
Protection Degree (IP Rating): IP20
