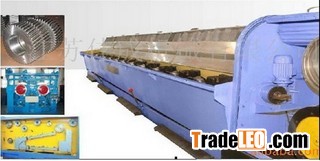

JCJX-LHD400/11 Aluminum rod breakdown machineMain feature:
1.Application:The machine is used for drawing round brake aluminium wire from Ø9.5 to F2.3-4.2mm
2.Compose:Pay off stand,wire drawing,tension box,take up equipment,wire pointer&stripper and electrical control system and so on.
Technical parameter:
Power control Double
Inlet Dia.(mm) F9.5
Outlet Dia.(mm) F2.3-F4.2
Drawing Drum Dia.(mm) F400
Fix speed Capstan Dia.(mm) F400
Max. Die NO. 11
Drawing Speed (MAX)(m/s) 12
Main Motor(KW) 110(AC/DC)
Drum arangement Horizontal type
Drawing drum Coated by tungsten
Drawing lubrication Immersed type
Gear,bearing lubrication By special pump,spry type
Take-up type(optional) Double Take-up/Single Take-up
optional function Fast change die
