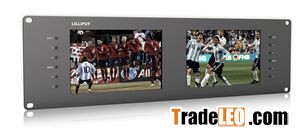

Lilliput's dual 7-inch rack monitors features 2 attractive IPS panels, which with 1,280 x 800 high resolution, 178° wide viewing angles, high brightness and contrast, and faster response time, that provides excellent viewing experiencemetal and thin housing design is also welcome by live events and shows
Panel: 7 inches x 2 LED backlight
Physical resolution: 1,280 x 800
Aspect ratio: 16:9
Brightness: 400cd/m²
Contrast: 800:1
Viewing angle: 178/178° (H/V) (IPS)
Input signal: 3G-SDI x 2, HDMI x 2, YPbPr x 6 (BNC), composite x 2, tally x2, LAN x 1 (coming soon), USB2.0 (mini) x 1
Output signal: 3G-SDI x 2, HDMI x 2, YPbPr x 6 (BNC), composite x 2
Current: 1,500mA
Input voltage: DC 12V
Power consumption: =18W
Operating temperature: -20 to 60°C
Storage temperature: -30 to 70°C
Dimensions (L x W x D): 482.5 x 133.5 x 25.3mm
Weight: 2,885g
