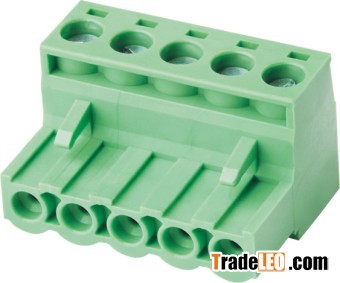

WJ2EDGK

Material:
Screws: M3.0 Steel Zn plated
Clamp: Phosphor bronze, Ni plated
Cage: Brass, Ni plated
Housing: PA66 UL94V-0

Electrical
Rated voltage: 300V
Rated current: 15A
Wire range: 28-14AWG 2.5mm²
Contact resistance: 20mO
Insulation resistance: 500mO /DC500V
Withstanding voltage: AC 2000V/1 Min


Mechanical
Temp. Range: -40º C~+105º C
Max.soldering:+250º C for 5 Sec
Torque: 5.10kgf-cm/0.5Nm/4.43Lbin
Strip length: 7-8mm
