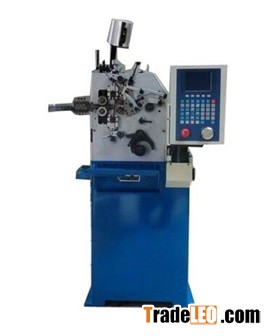

Features and Uses:1,The machine uses two high-precision computer-controlled delivery spool shaft and spindle, two axes can be synchronized or independent operation. Feeding wire axes control sending wire , spindle driving cam to control diameter, pitch, cutter, etc. forming. It applies to all kinds of rolling spin around springs, torsion springs, wire forming and other special-shaped spring. Optional free length testing and dosing device can automatically correct spacing to ensure the accuracy of the product
Specifications
Model Number AS-208
Axes quantity 2PCS
Wire Diameter range 0.15-0.8mm
Maximum External Diameter 20mm
Maximum Feeding Length Unlimited
Maximum production speed 500PCS/Minute
Cylinder probe 1Group
Cam Servo Motor Power 1.0kw
Wire feed servo power 1.0kw
Working Power 380v
Dimensions(L*D*H) 870×780×1600mm
Machine Weight 350kg
