Specifications: Model

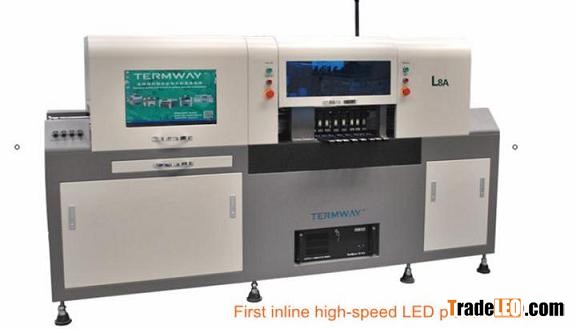

L8A
Max circuit board size
1200×280mm
Max moving range
X axis1500mm,Y axis 410mm
Max moving range of Z axis
15mm
Typical Mounting speed
25000-30000cph(3528 component)
Max mount speed
35000cph
Mount accuracy
±0.05mm
Position method
Visual position + Machinery position
Component available
0603 and above SMD component and LED,SOT,SOP
Programmingmethod
Automatic data import/ video study/ keyboard input
Belt feeder
8mm,12mm,16mm and 24mm
Feeder num
8 pcs of GF series feeder can be set(16 pcs feeders are optional)
Operation system
WINDOWS XP
Compressed air
large production should use industrial air pump
Power supply
220V,50Hz,4.5Kw
Weight
760Kg
Dimension
2600×760×1500mm
