Specifications:Model

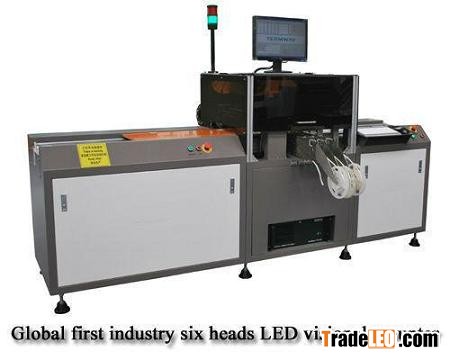

LED640V
Mount head
4 pcs
Max circuit board size
1200*350mm
Max moving range
X axis 1500mm, Y axis 410mm
Max moving range of Z axis
15mm
Typical Mounting speed
8000-9600 cph
Max mount speed
12000cph
Mount accuracy
+/-0.1mm
Position method
Machinery position
Component available
0603and above SMD component and LED
Programme method
Automatic data import/ video study/ keyboard input
Belt feeder
8mm, 12mm, 16mm and 24mm
Feeder num
4 pcs of GF series feeder can be set
8 pcs of GF feeders is optional
Operation system
WINDOWS XP
Compressed air
Vacuum air in machine, no need to add air
Power supply
220V,50Hz, 4 Kw
Weight
360kg
Dimension
2600*680*1500mm
