Specifications:Model

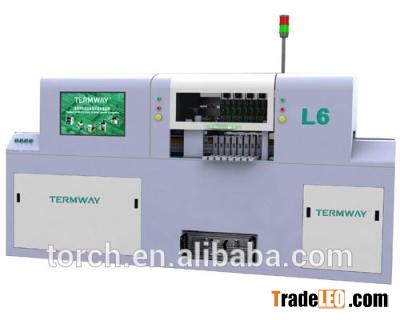

L6
Max circuit board size
1200*350mm
Max moving range
X axis 1500mm, Y axis410mm
Max moving range of Z axis
15mm
Typical Mounting speed
13000-14000cph
Max mount speed
18000cph
Mount accuracy
+/-0.05mm
Position method
Visual position/Machinery position
Component available
0603 and above SMD component and LED,SOT,SOP
Programme method
Automatic data import/ video study/ keyboard input
Belt feeder
8mm, 12mm, 16mm and 24mm
Feeder num
6 pcs of GF series feeder can be set (12 pcs feeders are optional)
Operation system
WINDOWS XP
Compressed air
large production should use industrial air pump
Power supply
220V,50Hz, 4.5 Kw
Weight
500Kg
Dimension
2600×760×1500mm
