Price:Negotiable
Brand:LCT

Send Inquiry

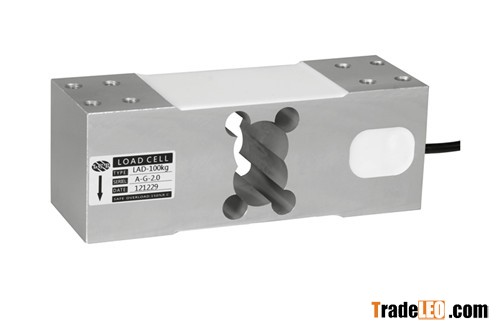

1?Features
Material:Aluminum alloy

High accuracy,OIML R60 approved.

Mainly used for price computing scales,counting scales,platform scales etc.

2?Specifications


Rated Loading:60Kg~1000Kg

Dimension:64*60*174mm

Rated Output:2.0mv/V±5%

Zero Balance:±0.05R.O.

Non-linearity :±0.015%R.O.

Hysteresis,Repeatability:±0.01%R.O.

Creep in 30 Min.:±0.02%R.O.

Temp. Effect on Output:±0.02%R.O./10?

Temp. Effect on Zero:±0.02%R.O./10?

Input Resistance:405±10O

Output Resistance:350±3O

Safe Overload:150%R.C.

Insulation Resistance:=5000MO

Compensated Temp. Range:-10to+40?

Operating Temp. Range:-20to+60?

Excitation ,Recommended:5-12VDC

Cable,Length:f5mm*2m
