1?Features

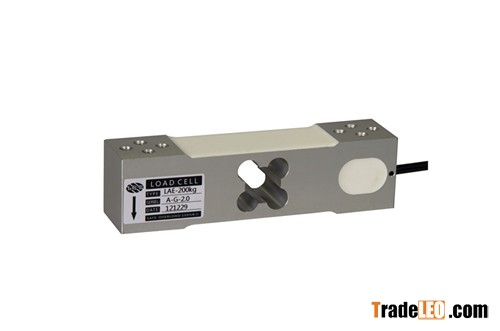

Material:Aluminum alloy

High accuracy,OIML R60 approved.

Application:Mainly used for price computing scales,counting scales,platform scales etc.

Max.platform size:400*400mm

2.?Specifications

Rated Loading:25,40,60,100,200,350kg

Dimension:35*40*150

Rated Output :2.0mv/V±5%

Zero Balance:±0.05R.O.

Non-linearity:±0.015%R.O.

Hystereis,Repeatability:±0.01%R.O.

Creep in 30 Min.:±0.02%R.O./30Min

Temp. Effect On Output:±0.02%R.O./10?

Temp.Effect on Zero:±0.02%R.O./10?

Input Resistance:405±10O

Output Resistance:350±3O

Safe Overload:150%.R.C

Insulation Resistance:=5000MO

Compensated Temp. Range:-10to+40?

Operating Temp. Range:-20to+60?

Excitation,Recommended:(5-12)VDC

Cable,Length:f5*1.5m
