1?Features

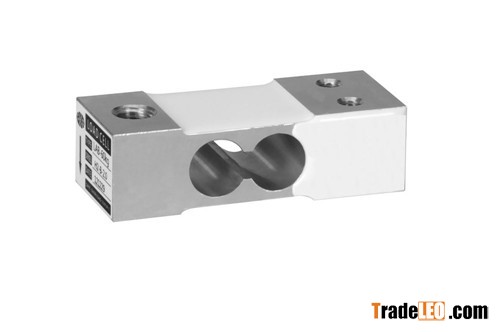

Material:Aluminum alloy
Cost-effective
Application:Mainly used for price computing scales,counting scales,weighing scales etc.
Max.platform size:250*350mm

2?Specifications

Rated Capacity:20,40,60,100,200kg

Dimension:22*30*75mm

Rated Output:2.0mv/V±10%

Zero Balance:±0.05R.O.

Non-linearity :±0.02%R.O.

Hysteresis,Repeatability:±0.015%R.O.

Creep in 30 Min.:±0.03%R.O.

Temp.Effect on output:±0.03%R.O./10?

Temp.Effect on zero:±0.05%R.O./10?

Input Resistance :405±10O

Output Resistance:350±3O

Safe Overload:150%R.C.

Insulation Resistance:=2000MO

Compensated Temp.Range:-10to+40?

Opearting Temp.Range:-20to+60?

Excitation,Recommended:5~12VDC

Excitation,Maximum:18VDC

Cable,Length:f4mm*40cm
