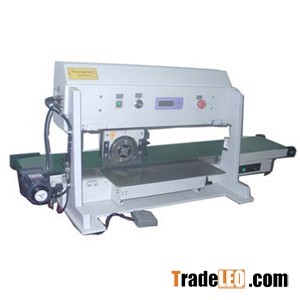

V-CUT PCB separator machine
1.Blade move automatically and separate both small and large PCBs fast and economically
2.Can separate all kinds pre-scored V groove substrate PCB
3.Safety use and easy operation
4.Use conveyor belt to improve production efficiency


V-CUT PCB separator machine specifications:
Model:CWV-2A
Max.PCB separating length:460mm (can custom made)
PCB separating thickness:0.6-3.5 mm
PCB separating speed:100,200,300,500 mm/sec
conveyor belt length:1350mm(can custom made)
Voltage: 110/220V
PCB separator machine weight:75kg
PCB separator machine size:770*460*570mm


V-CUT PCB separator machine features:
1.Firm machine structure be designed to prevent electronic circuit, solder point, and solder cutting area of PCB from damage by unsuitable force.
2.Effectively reduce stress and prevent solder point chap from PCB separation.
3.PCB separation speed can be adjusted by a rotary knob.
