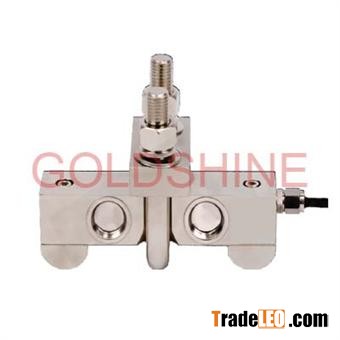

Product Characteristics:Double Ended Beam Load Cell GS104-MA load cell are available in the capacities 1~10t Weighing alarm, detection of wire rope tension.
Dimensions:Technical Parameter:
Rated Load: 1/2/3/5/10t
Sensitivity:
(2.0±0.1%) M V/V
Combined Error:
±0.05% F.S
Creep Error30min:
±0.02% F.S
Zero Balance:
±1% F.S
Tco:
±0.02% F.S/10
Tc Span:
±0.02% F.S/10
Input Resistance:
750±5?
Output Resistance:
702±3?
Insulation Resistance:
=5000m?
Operating Temp. Range:
-30~+70
Maximum Safe Over Load:
150%F.S
Ultimate Over Load:
300%F.S
Recommend Excitation:
10~12v Dc
Maximum Excitation:
15v Dc
Sealing Class:
Ip67/Ip68
Element Material:
-A: Alloy Steel, -Ss: Stainless Steel
Cable:
Length=L:12m(25~50klb),16m(60~75klb)
Citation:
GB/T7551-2008/ OIML R60
Mode Of Connection:
Red(Input+),Black(Input-),Green(Output+),White(Output-)
