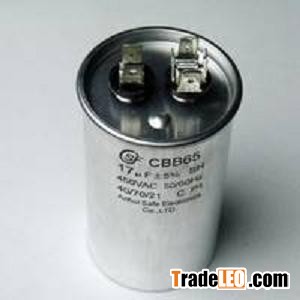

Feature: The capacitor takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindric outline with high reliability and stability.
Applications :
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.
Technical Specifications
Standard: IEC 60252-1: 2001
Technical features:
Climate type: 40/70/21
Capacitance tolerance: ± 5%
Insulation Resistance: = 3000S. µ F I. R
Dielectric dissipation factor: Tgd = 0.002 (50Hz~100Hz)
Application requirements:
Altitude: = 2000m
Residual voltage in application: Less than 10% of rated voltage.
Allowed maximum voltage: Less than 1.1 times of rated voltage
Permissible maximum current: Less than 1.3 times of rated current
