50-06b brushless DC hot water pump ( with aluminum body) - Sell

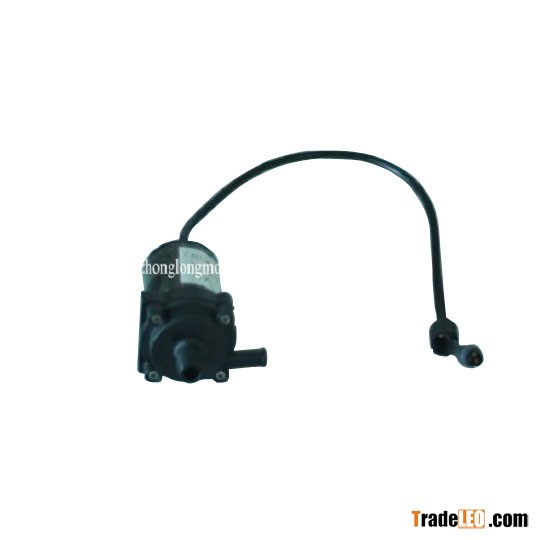

50-06b brushless DC hot water pump ( with aluminum body)

2017-01-13 04:53 Views:286

Price:Negotiable

It can be powered directly by Solar panel; DC electric source; battery.

Specification:
Model Working voltage Working current Static lift Static flowrate Temp Remarks
50#-06b 12VDC 2500mA 7 meter 14 L/min =110degC
24VDC 2000mA 8 meter 15 L/min =110degC
The tolerance of technical parameters above is ±10%
Remarks:The technical parameters above is only for your reference, for more detailes, please feel free to contact us, you can provide us your detailed technical parameters.
Structure dimensions
Model Dimension(mm) Inlet OD(mm) Outlet OD(mm) Remarks
50#-06b 106*58*75 M16 11
