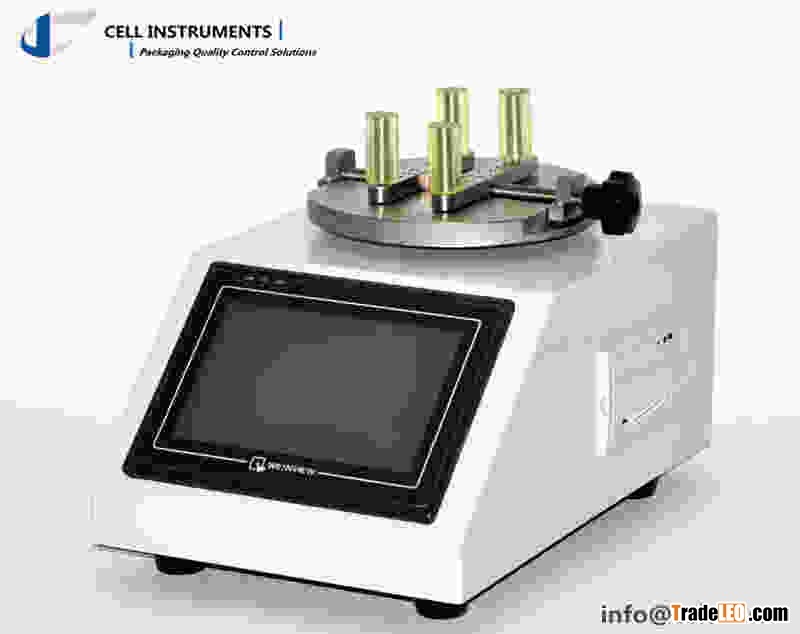

Torque Tester measures the open force and lock force of the caps of medicine bottles, PET bottles, spout bags and flexible tube packages. The torque test can determine the proper lock and open force of caps in production and thus guide the transportation and consumption process. Features
PLC control unit and touch screen operation
Both locking and opening force can be measured
Peak value auto keeping
Micro printer for easy data recording
RS232 port and professional computer software (optional)
Overload protection, auto zeroing function
Technical Data
Test Range: 10 Nm
Accuracy: 1% FS
Resolution: 0.001 Nm
Clamp Range: F5mm~F170mm
Dimension: 240×350×270 mm
Weight: 19 kg
Standards
ASTM D 2063, ASTM D3198, ASTM D3474, GB/T17876, BB/T0025, BB/T0034
Standard Configuration: Mainframe, micro printer
Optional: software, communication cable
