Perpendicularity tester measures the coaxiality of various bottle containers in food, cosmetics and pharmaceutical industries. The coaxial tester is easily-operated with high centering and measurement precision and it is widely used in bottle makers, users and research facilities for verticality deviation. Principle

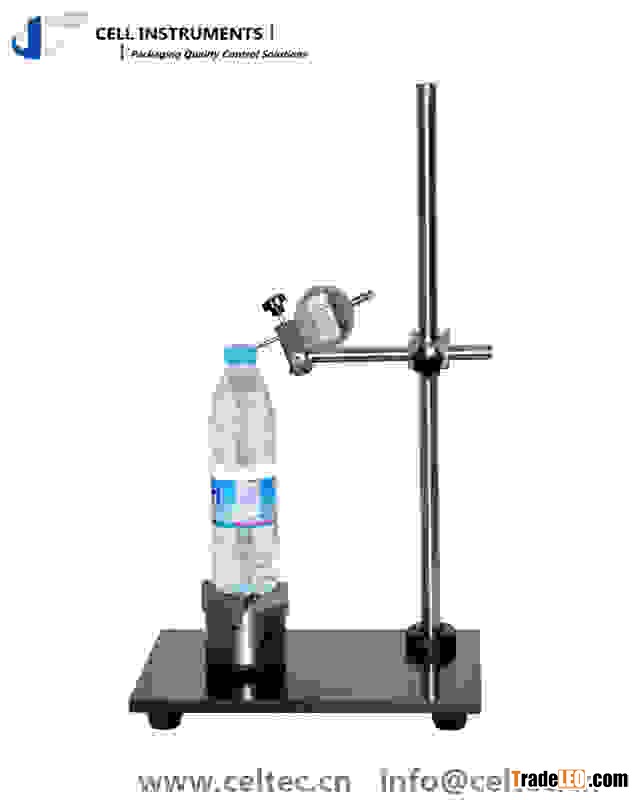

The bottle is fixed on a rotating plate and the bottle mouth is contacting with dial gauge. Record the maximum and minimum reading after rotating a full circle of 360 °. The 1/2 of the difference between the two is the vertical axis deviation value.
Technical Data
Sample Diameter: 5mm-150mm
Test Rage: 0-12.7mm
Division value: 0.01mm
Measurable Height: 15mm-300mm
Dimension: 330mm(L)*220mm(W)*430mm(H)
Weight: 23Kg
Standards:
GB 8452, QB 2357, QB/T 1868, YBB00192003
Configuration
mainframe, digital measuring head
