Circle runout tester measures the coaxial deviation of ampoule bottle and penicillin bottle. It is essential model for pharmaceutical companies and testing institutions. It's based on YBB00192003. Principle

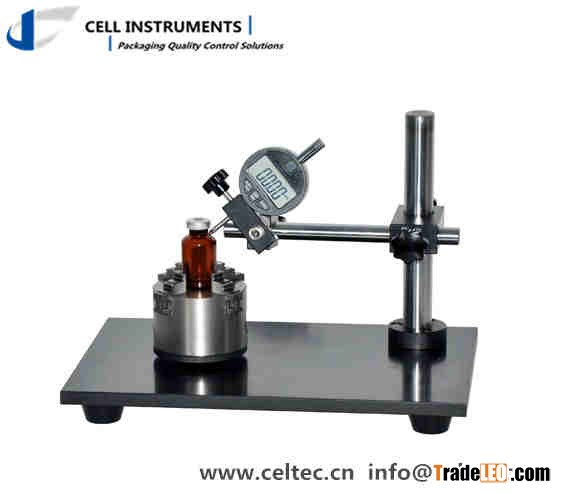

The bottle is fixed on a rotating plate and the bottle mouth is contacting with dial gauge. Record the maximum and minimum reading after rotating a full circle of 360 °. The 1/2 of the difference between the two is the vertical axis deviation value.
Technical Data
Sample Diameter: 5mm-80mm
Test Rage: 0-12.7mm
Division value: 0.01mm
Measurable Height: 15mm-300mm
Dimension: 330mm(L)*220mm(W)*230mm(H)
Weight: 12Kg
Standard
YBB00332002, YBB00192003, GB 8452, GB 2639
Configuration
mainframe, digital measuring head
