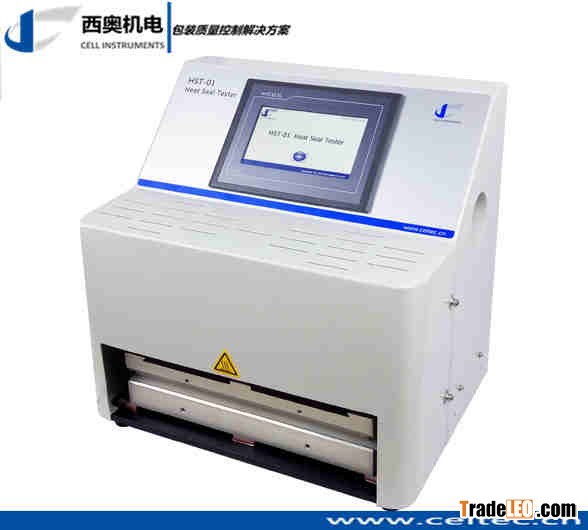

Heat Seal Tester is for the determination of the heatsealability of a surface, or sealant layer of films, laminates, composites and polymers etc. How well the material heatseals is expressed quantitatively as seal strength as a function of the sealing conditions of temperature, time and pressure. Heatsealability Tester conforms to standards of ASTM F2029, QB/T 2358 and YBB 00122003. Technical specifications
Sealing temperature Room Temperature ~ 300?
Deviation ±0.2?
Dwell time 0.1 s~9999s
Sealing pressure 0.15 MPa ~ 0.7 MPa
Sealing Jaws 330mm×10mm(Sealing Surface)(Customization Available)
Double Heating of Upper and Lower Jaws
Gas Pressure 0.7 MPa of Air
Dimensions 455mm (L) *320mm (W) *440mm (H)
Port Size ?6 mm PU Hose
Power AC 220V 50Hz
