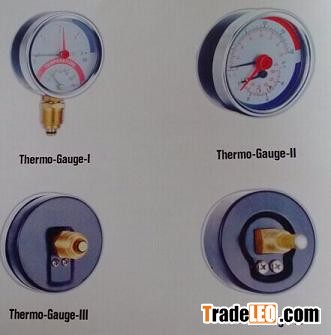

Thermo Gauge Size: 1.5’’ or 6’’
Pressure range: 0-4bar/0-120?,0-6bar/0-120?,0-10bar/0-120?
Socket: Brass material
Thread: BSP, NPT, BSPT, PT, ZG and other special specification
Bourdon tube: Phosphor bronze
Case: Plastic, black steel, chrome Plated
Bezel: No bezel, black steel press-on bezel, chrome plated press-on bezel
Window: Plastic press-in, PC lens or glass lens
Dial Plate: Single scale ( Bar, Psi, Kg/cm2, Kpa, Mpa)
Accuracy: 3-2-3%, 2.5%, 1.6%
Movement: Steel, brass or stainless steel material
Pointer: Aluminum material
Over pressure: 130%
