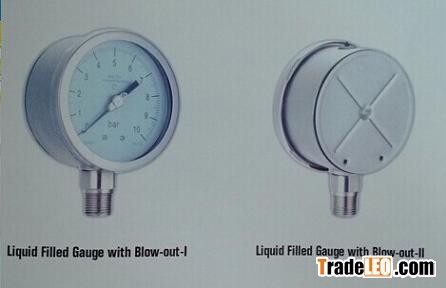

Liquid Filled Gauge with Blow-outSize: 2.5’’ or 4’’
Pressure range: from 30inHg to 4000 Bar
Socket: St St material
Thread: BSP, NPT, BSPT, PT, ZG and other special specification
Bourdon tube: Stainless Steel material
Higher Case: 304 St St., 316 St. St material, polished or not polished,
Bezel: 304 St St bayonet ring or 316 St St bayonet ring.
Window: PC lens or safety glass
Dial Plate: Single, dual or three scale ( Bar, Psi, Kg/cm2, Kpa, Mpa)
Accuracy: 3-2-3%, 2.5%, 1.6%, 1%
Movement: Stainless steel material
Pointer: Aluminum or stainless steel material (adjust type)
Restrictor: St St material
Over pressure: 130%
Connection type: One connection sealed
