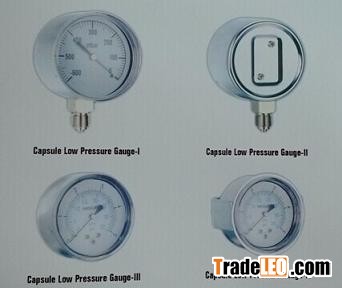

Capsule Low Pressure Gauge Size: from 2’’ to 6’’
Pressure range: from 25Mbar to 1000Mbar
Socket: brass, chrome plated or stainless steel material
Thread: BSP, NPT, BSPT, PT, ZG and other special specification
Bourdon tube: Phosphor bronze or Stainless Steel material
Case: 304 St St., 316 St. St material, black steel, chrome plated. with adjust screw
Bezel: No bezel, black steel press-on bezel, chrome plated press-on bezel,
304 St St press-on bezel or 316 St St press-on bezel or St St bayonet bezel
Window: Plastic press-in, PC lens, glass lens and screw-on PC lens
Dial Plate: Single, dual or three scale ( Bar, Psi, Kg/cm2, Kpa, Mpa)
Accuracy: 3-2-3%, 2.5%, 1.6%, 1%
Movement: Brass or brass chrome plated
Pointer: Aluminum or stainless steel material
Restrictor: Brass or St St material
Over pressure: 130%
Connection type: One connection sealed
