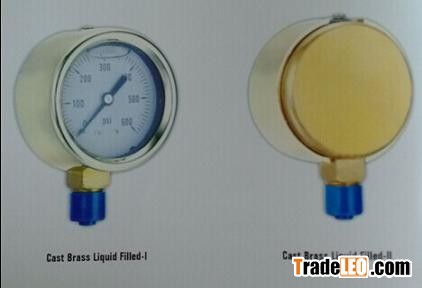

Gas Brass Liquid Filled GaugeSize: 2.5’’
Pressure range: from 30inHg to 10000psi
Socket: brass material
Thread: BSP, NPT, BSPT, PT, ZG and other special specification
Bourdon tube: Phosphor bronze or Stainless Steel material
Case: All brass material
Bezel: Yellow colored plastic bezel.
Window: PC lens or glass lens
Dial Plate: Single, dual or three scale ( Bar, Psi, Kg/cm2, Kpa, Mpa)
Accuracy: 3-2-3%, 2.5%, 1.6%
Movement: Steel, brass or stainless steel material
Pointer: Aluminum material
Restrictor: Brass or St St material
Over pressure: 130%
Connection type: Connection with the case together
